Product Description

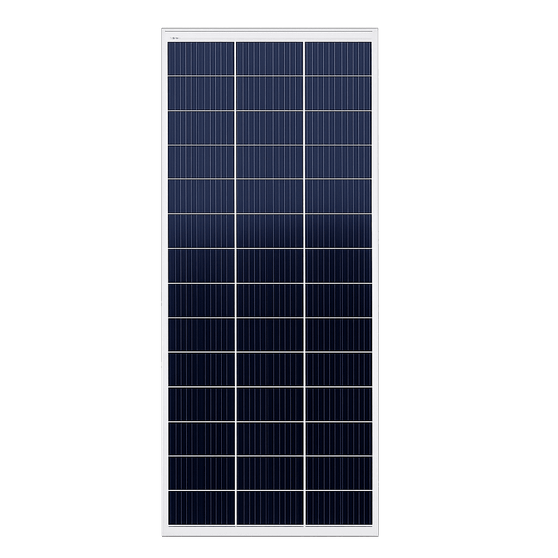

250W mono crystalline high output solar panel, shade tolerant. The panel has a heavy duty frame with 3mm toughened glass. This panel is very popular in the RV and offroad markets. The unit comes supplied with a 15A fuse on the positive cable and uses industry standard MC4 connectors. The panel can be connected in series or parallel.
Features:
- Mono Crystalline
- Shade Tolerant
- Heavy Duty Aluminium Silver Frame
- 3mm Toughened Glass
- Short 15A fused power cable & Junction box
- MC4 Connectors
- Fully weatherproof
- 25 year Limited Warranty
Technical Specifications:
- Specifications
- Dimensions: 1850x670x30mm
- Weight: 12.50kgs
- Max power (PM): 250W
- Voltage Pmax (Vmp): 41.2V
- Current Pmax (Imp): 6.07A
- Open Circuit Voltage (Voc): 48.2V
- Short Circuit Current (Isc): 6.15A
- Maximum System Voltage: 1000VDC
- Fused Rating: 15A
- Operating Temperature: -40°C - +85°C
- Application Class: A-Class
Packages:
- 1x 250W Solar Panel
