Product Description

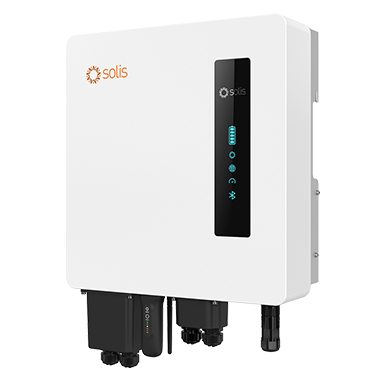

Established in 2005, Solis stands as the world's third-largest PV inverter manufacturer. As a global provider of solar and energy storage solutions catering to residential, commercial, and utility-scale customers, we deliver value across the solar supply chain. Operating under the Solis brand, our solar inverter product line employs innovative string technology, ensuring top-tier reliability validated through rigorous international certifications.
Features:
- 5KW
- Low Voltage AC Coupled
- Use your Existing Inverter to charge new battery
- CEC Approved and listed
- WIFI
Technical Specifications:
- Specifications
|
Power Rating |
5KW |
|
DC Input |
10000V Max |
|
MMPT Strings |
0 |
|
IP Rating |
66 |
|
Phases |
Single |
|
Voltage Type |
Low |
|
Application Type |
Residential |
|
Communication Type |
Wi-Fi |
|
Grid Connection Communication |
IEE 2030-5 2020 |
|
Dimensions |
192x440x465mm |
|
Weight |
23.5Kg |
|
Noise level |
46.8 dB(A) |
|
DC Connections |
MC4 |
|
CEC Approval Standard |
AS4777-2:2020 |
Packages:
- 1x Solis 5Kw AC coupled Inverter
- 1x Wall Mounting Plate
- 2x Fastening Screws
- 1x AC Grid Terminal
- 1x AC Back up Terminal
- 2x DC Connectors
- 8x RJ45 Connectors
- 2x Battery Cables 3M
- 1x Battery Temp Sensor or Can Cable
- 1x RS485 Meter cable (For Eastron Meter)
- 1x Eastron Meter and CT Clamp
- 1x RS485 Connector
- 1x Wi-Fi Stick
- 1x Bluetooth Antenna
- 1x User Manual
